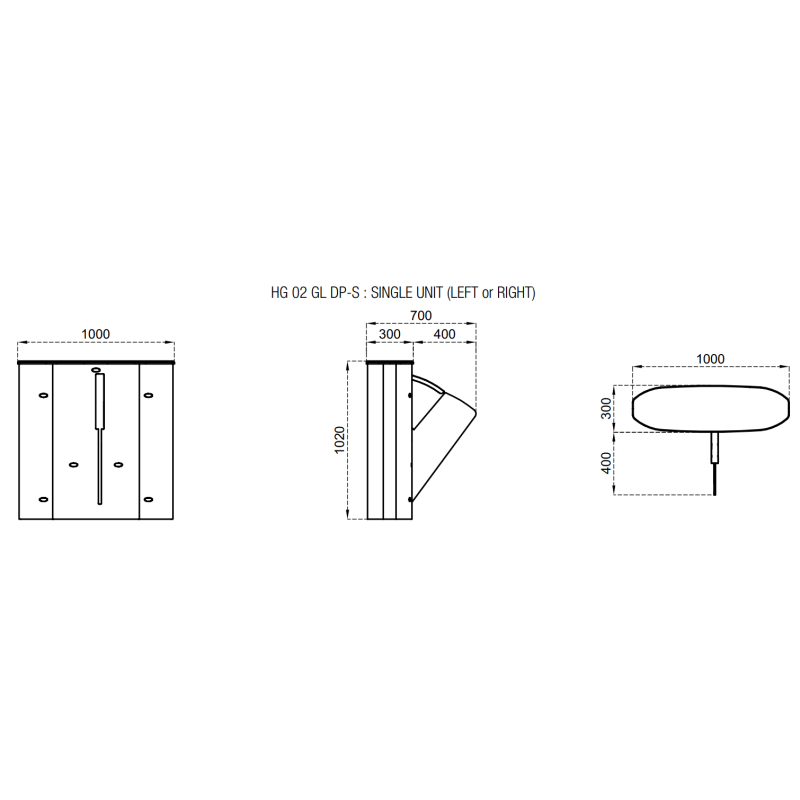

Ozak HG 02 GL DP-S – Single Wing Gate Turnstile (OZ/HG02GLDP-S)

Reference OZ/HG02GLDP-S

Quick Overview

Premium single-unit wing gate in satin stainless steel with tempered glass top lid and RGB LED-lit wings. Fast 0.5 s opening, 30–60 p/min throughput, IP44 indoor rating, and emergency free passage with battery backup. DDA Compliant: The HG 02 GL DP models provide a wider passage lane, suitable for accessibility requirements (wheelchairs, prams, luggage).

Price: £4,126.80
Tax included
Price: £4,126.80
Tax included
Found it cheaper? We can price match...
Need this in a hurry? Contact us...
Price: £4,126.80
Tax included

Share on

Product Description

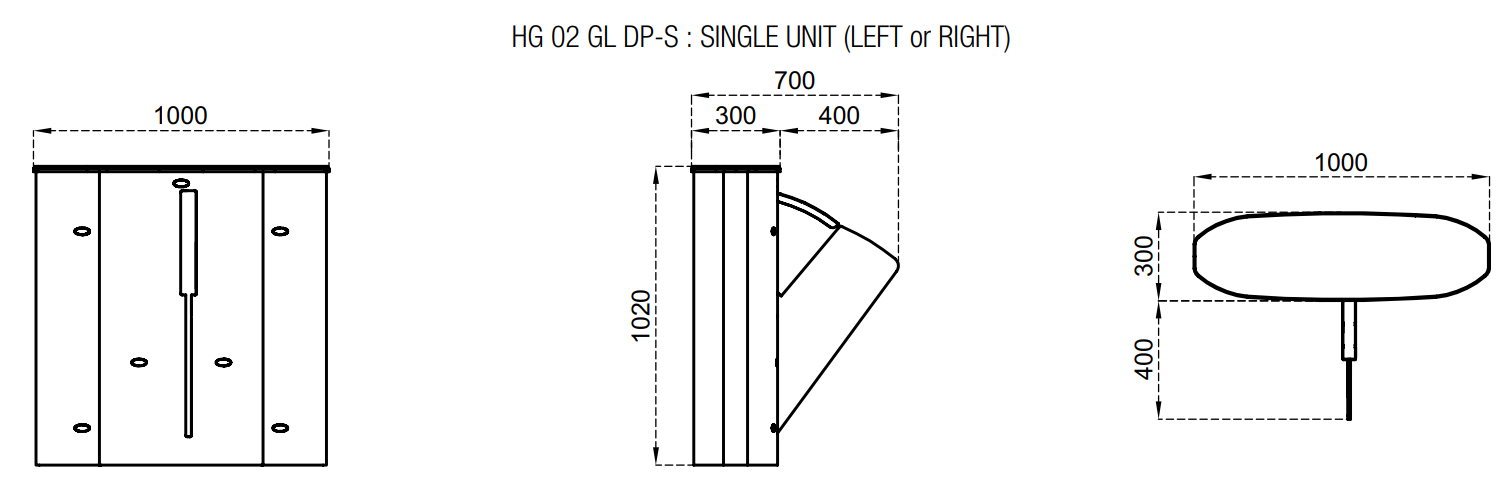

The HG 02 GL DP-S is a single-unit wing gate turnstile (left or right version) designed for elegant, secure, and high-traffic access control.

Its body is crafted from 304-grade satin-finish stainless steel (optional upgrade to 316) with a 10 mm tempered glass top lid. Decorative options are available, including natural granite (Star Galaxy Black) or custom patterns.

The wings are illuminated with RGB LEDs and built from 10 mm impact-resistant tempered glass with coloured acrylic inlays. Operation is fast and smooth, with both opening and closing completed in 0.5 seconds.

Nominal throughput is 30–60 passages per minute (see Important Notes). Operation modes are selectable via DIP switches: free passage by photocell detection, restricted access, or controlled access in one or both directions.

The gate is powered by 110 V AC, 220–240 V AC, or 24 V DC, consuming only 10 W on standby and 39 W during operation. Emergency mode with internal backup battery ensures free passage in case of power failure.

Inputs are opto-coupler protected and compatible with all standard access control systems providing dry contact or grounding outputs. Optional interface modules (RS232, RS485, TCP/IP) are available for integration.


✅ Key Features

  • Satin-finish 304 stainless steel body (316 optional)

  • 10 mm tempered glass top lid, decorative options available

  • RGB LED-illuminated tempered glass wings

  • Fast access: 0.5 s open / 0.5 s close

  • Nominal throughput: 30–60 passages/min

  • Selectable modes: free, restricted, or controlled access

  • Emergency free-passage mode with backup battery

  • Opto-coupler protected inputs for dry contact/ground output systems

  • Optional RS232/RS485/TCP-IP module for system integration

  • Indoor rating: IP44


⚙ Technical Data

SpecificationDetail
ModelHG 02 GL DP-S (Single Unit, left or right)
Body material304 stainless steel (316 optional)
Top lid10 mm tempered glass (optional granite or custom finish)
Wings10 mm impact-resistant tempered glass + acrylic, RGB LED illumination
Power supply110 V AC, 220–240 V AC (50/60 Hz, ±10%), 24 V DC
Power consumptionStandby ~10 W; Operating ~39 W
Wing speedOpening ~0.5 s; Closing ~0.5 s
Flow rate30–60 passages/min (see notes)
ControlOpto-coupler protected inputs; dry contact/ground compatible
InterfacesOptional RS232, RS485, TCP/IP
Protection ratingIP44 (indoor)
Environment−20 °C to +68 °C; RH ≤ 95% non-condensing
EmergencyBackup battery, free-passage on power loss

⚠️ Important Notes

  • Flow rate dependency: “Utilisation of different access control units can change the flow rate.”

  • Lane composition requirement: “A passage lane consists of min. 2 pieces of single units facing each other.”

  • Indoor rating: IP44 (indoor use only).
