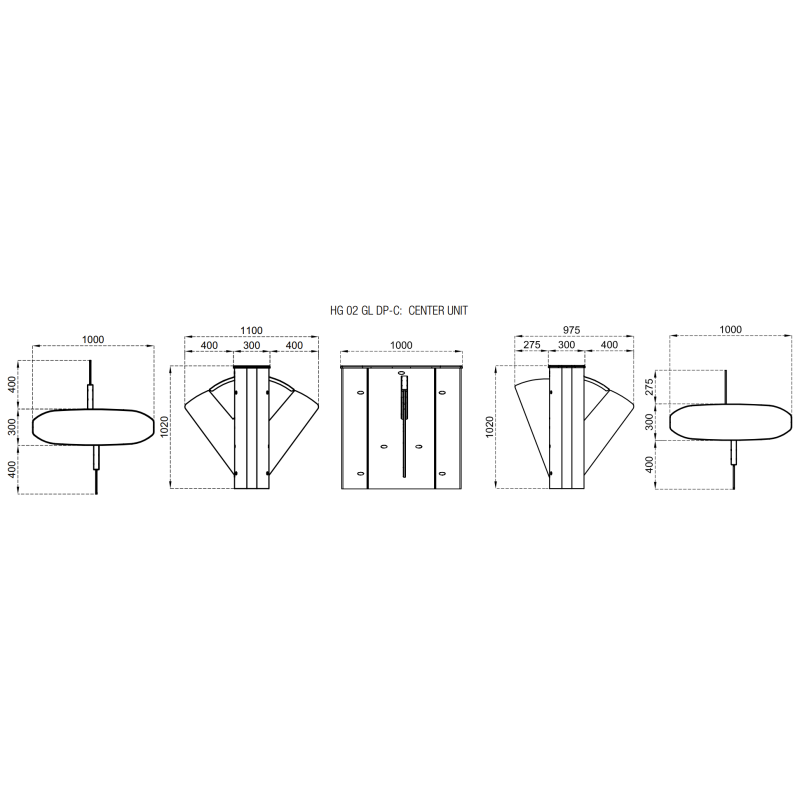

Ozak HG 02 GL DP-Combined – Centre Unit Wing Gate Turnstile (OZ/HG02GLDP-C)

Reference OZ/HG02GLDP-C

Quick Overview

Premium centre-unit wing gate in satin stainless steel with tempered glass top lid and LED-lit decorative glass wings. Designed to form multi-lane setups when paired with two or more Single Units. Fast 0.5s movement, 30–60 passages/min, IP44 indoor model, with free-passage emergency mode. DDA Compliant: The HG 02 GL DP models provide a wider passage lane, suitable for accessibility requirements (wheelchairs, prams, luggage).

Price: £6,544.80
Tax included
Price: £6,544.80
Tax included
Found it cheaper? We can price match...
Need this in a hurry? Contact us...
Price: £6,544.80
Tax included

Share on

Product Description

The HG 02 GL DP-C Centre Unit is the matching component to the HG 02 GL DP-S Single Units, designed to create multi-lane access passages.

Built from 304-grade satin stainless steel (316 optional) with a 10 mm tempered glass top lid (optional granite or decorative finish), the Centre Unit features RGB LED-illuminated 10 mm tempered glass wings with coloured acrylic inserts.

With a 0.5 second opening/closing time and throughput of 30–60 passages per minute (dependent on access control integration), the DP-C offers the same performance and aesthetics as the Single Unit, but configured to allow adjacent lanes in multi-gate layouts.

Powered by 110/220–240 V AC or 24 V DC, the system consumes ~10 W standby and ~39 W in operation. Emergency free-passage is provided by an internal backup battery. Control inputs are opto-coupler protected and compatible with dry contact/grounding output access systems, with optional RS232/RS485/TCP-IP control modules available.


✅ Key Features

  • Centre Unit designed for multi-lane installations (paired with DP-S units)

  • Satin stainless steel body (304 standard, 316 optional)

  • 10 mm tempered glass top lid (granite or decorative finishes optional)

  • RGB LED-lit tempered glass wings with acrylic inserts

  • Fast 0.5s open/close, smooth and silent motion

  • Nominal 30–60 passages/min (see notes)

  • DIP-switch selectable modes: free, restricted, controlled access

  • Emergency free-passage with backup battery

  • Dry contact/grounding compatible; optional RS232/RS485/TCP-IP modules

  • Indoor use, IP44 rated

SpecificationDetail
ModelHG 02 GL DP-C (Centre Unit)
Body304 stainless steel, satin finish (316 optional)
Top lid10 mm tempered glass (optional granite/custom patterns)
Wings10 mm impact-resistant tempered glass + acrylic, RGB LED illuminated
Power supply110/220–240 V AC (50/60 Hz, ±10%); 24 V DC
Power consumptionStandby ~10 W; Operating ~39 W
Wing speed0.5 s opening; 0.5 s closing
Flow rate30–60 passages/min (see notes)
ControlOpto-coupler protected; dry contact/ground compatible
InterfacesOptional RS232, RS485, TCP/IP
Protection ratingIP44 (indoor model)
Environment−20 °C to +68 °C; RH ≤ 95% non-condensing
EmergencyBackup battery, free passage during power loss
