Product Description

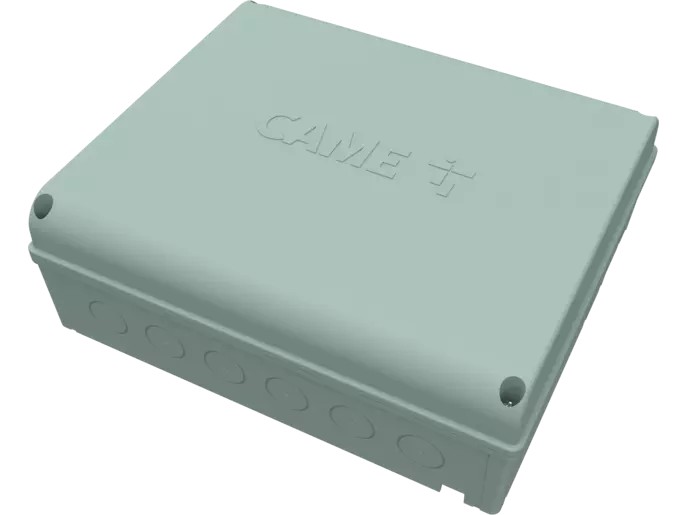

CAME RBE Plus 230v - Outdoor Multifunction Control Panel (806RV-0070)
Summary
The CAME RBE Plus 230 V is a robust outdoor multifunction control panel for advanced access-control and automation management. It handles up to 5,000 users, supports all CAME radio codes (TOP, TAM, TWIN, Rolling Code), connects up to 8 CXN BUS selectors, and manages 4 automation systems via CRP. Designed for reliability and scalability, it’s ideal for large commercial or multi-entrance sites.
Description
The RBE Plus controller is CAME’s next-generation access-control hub, designed for managing transmitters, keypads, and transponders in large or complex installations.
With capacity for 5,000 users, four relay outputs, and four digital inputs, it provides centralised management of gates, doors, and barriers while maintaining full compatibility with CAME CXN BUS accessories. Up to eight CXN BUS devices can be connected using accessory 806XG-0110.
It natively supports all CAME radio codes — TOP, TAM, TWIN, and Rolling Code — through optional AF43S (433.92 MHz) or AF868 (868.35 MHz) plug-in boards. The controller can directly manage four CAME automations via CRP protocol and integrates an event log and real-time clock for time-slot scheduling.
Installation is straightforward thanks to its DIN-rail mounting, ABS IP54 housing, and Quick & Easy with Code Function implemented directly on CAME keypads. The RBE Plus can also be connected to CAME CONNECT Cloud (via gateway) for remote monitoring and configuration.
✅ Key Features
-
Manages up to 5,000 users (transmitters / keypads / transponders)
-
Supports all CAME radio codes: TOP, TAM, TWIN, Rolling Code
-
Connect up to 8 CXN BUS accessories (via 806XG-0110)
-
4 relay outputs + 4 digital inputs for versatile automation control
-
Controls up to 4 CAME automations via CRP
-
Integrated real-time clock for timed access windows
-
Event log memory for access tracking
-
Quick & Easy with Code Function on CAME keyboards
-
CAME Key slot for secure programming
-
DIN-rail mounting, ABS enclosure (IP54)
-
CAME CONNECT compatible (via gateway)
-
Versions available: 806RV-0060 (24 V) and 806RV-0070 (230 V)
⚙ Technical Data
| Specification | 806RV-0070 (230 V Model) |
|---|---|
| Power supply | 120 – 230 V AC |
| Power consumption | 13.5 W |
| Radio frequencies supported | 433.92 MHz / 868.35 MHz (with AF boards) |
| Number of users | Up to 5,000 |
| CXN BUS connections | Up to 8 |
| Relay outputs | 4 |
| Digital inputs | 4 |
| Automations via CRP | Up to 4 |
| Protection rating | IP54 |
| Operating temperature | –20 °C to +55 °C |
| Housing material | ABS |
| Mounting | DIN rail |
| CAME CONNECT compatibility | Yes (via gateway) |
| Event log | Yes |
| Clock / Timers | Integrated real-time clock |

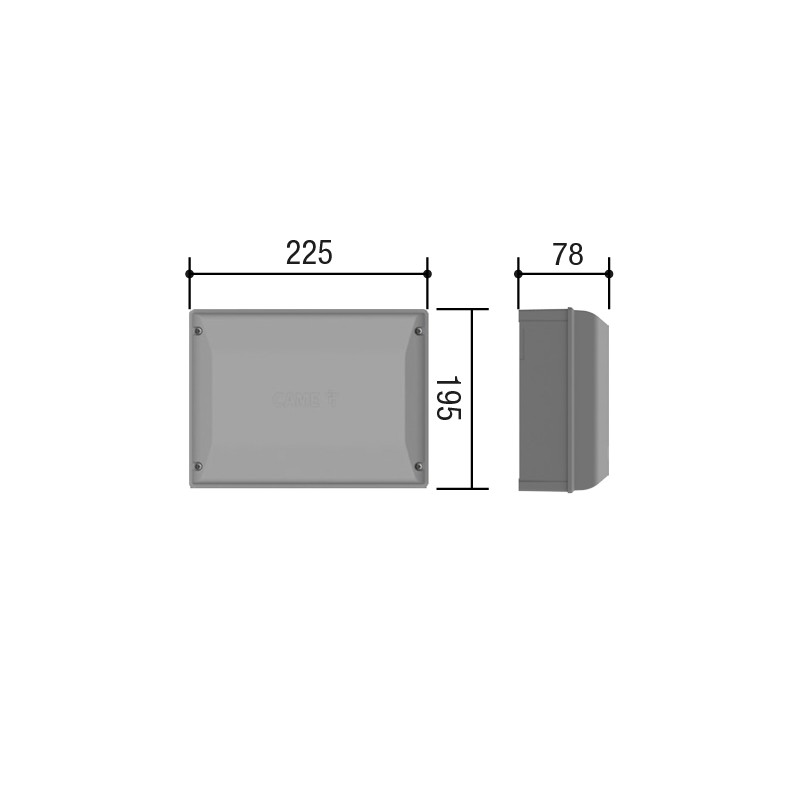

| Dimensions | (Refer to datasheet) |
| What comes in the box | |
|---|---|
| Quantity | Item |
| 1 | CAME RBE 230 Four Channel Controller |
Product Details
Product Specifics
| Shipping Index | 1 |
|---|---|
| Range | 150m |
| Frequency | 433.92 MHz and 868.35 MHz |
| Power Supply Voltage | 230Vac |
| Protection Rating | IP 54 |
| Product Type | Control Boards |
