Quick Overview

Complete CAME NEW ATI 24V automation kit for a pair of swing gate leaves up to 5m each. Uses twin ATI50DGF operators with continuous-duty 24V motors and offers a choice of DIR, DXR wired or DXR BUS photocells and TOP or TTS radio remotes, depending on the selected kit variant.

Submit a Free Gate Automation Survey
Let us handle the planning. Tell us about your swing or sliding gate project — we’ll recommend the right automation kit and accessories for a smooth, professional installation.
£1,741.20
£1,184.02 Save 32%
Tax included
Spread the cost with finance from 0% interest
Finance options
Found it cheaper? We can price match...
Need this in a hurry? Contact us...
Kit Options (required)
£1,184.02
Tax included
Add to basket
Buy Now
FREE SHIPPING

*Shipping is estimated for England

1-2 Business Days *Not guaranteed
Subject to stock & selected shipping service, Order by midday Mon-Fri

Share on

Facebook X Twitter Pinterest

Product Description

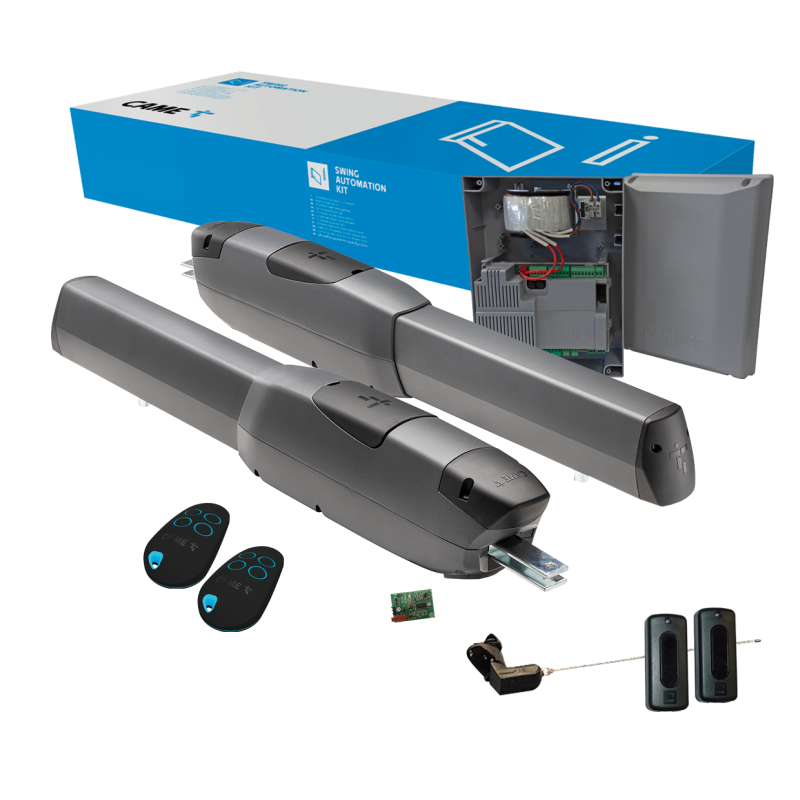

This CAME NEW ATI 5m 24V double swing gate kit is designed for automating two gate leaves up to 5m each, within the specified weight limits, using twin ATI50DGF electromechanical operators. The 24V motors provide up to 4000 N of thrust with an opening time of around 19 seconds for 90°, and are rated for continuous-duty operation when used with a suitable 24V control panel.

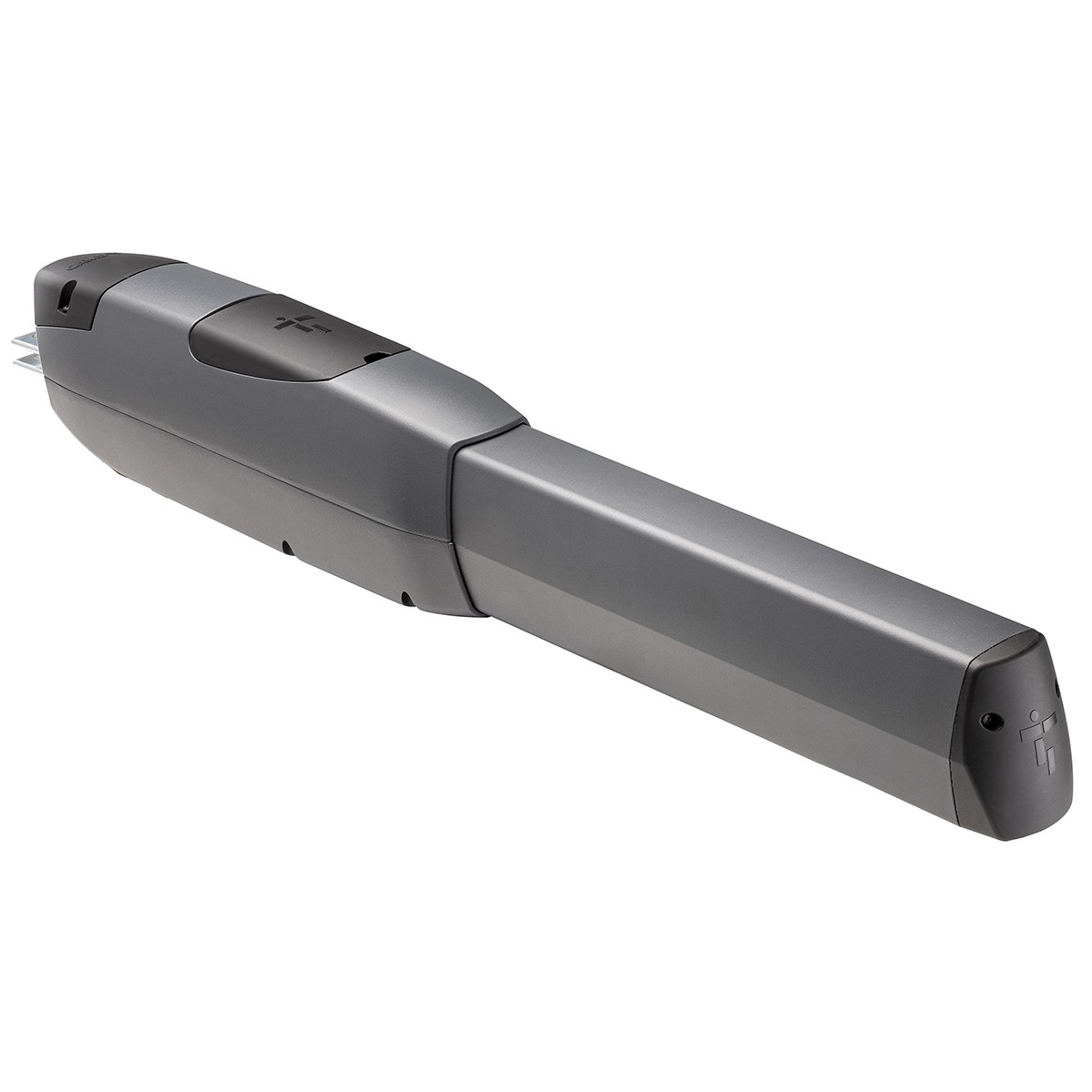

Each ATI50DGF operator has a metal structure with a die-cast aluminium body and an extruded aluminium casing that protects the internal worm screw and helps limit vibration during movement. A protected manual release with trilobe key allows each leaf to be disengaged and moved by hand in the event of a power cut or during maintenance. A pre-welded multi-hole tail bracket is supplied with the operators to simplify positioning on different post sizes and geometries.

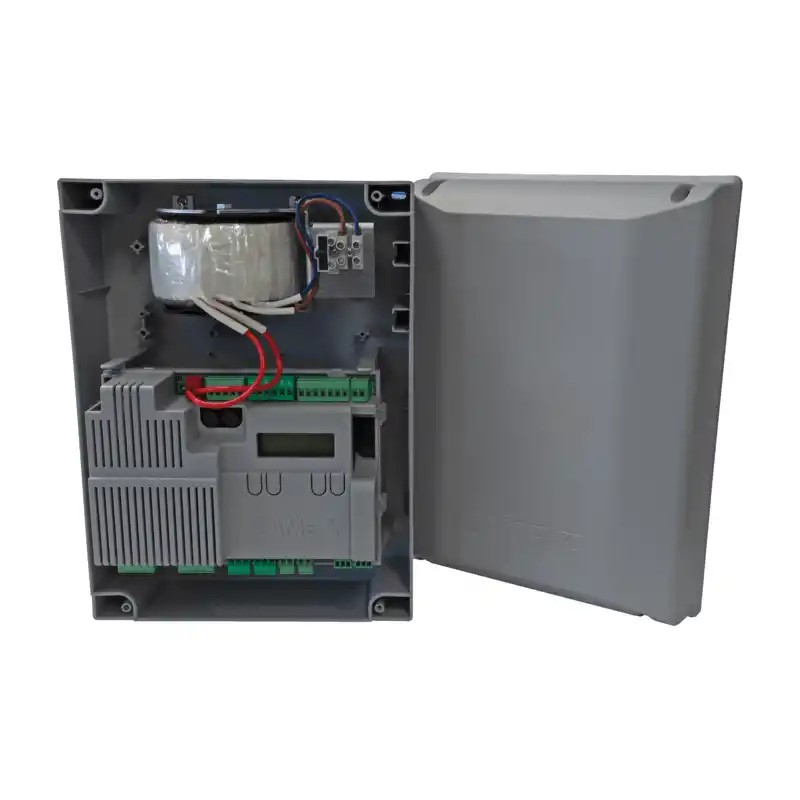

As part of the NEW ATI 24V range, the system can take advantage of adaptive control of speed and torque (AST) and optional battery-powered emergency operation when combined with a compatible CAME 24V control panel. AST enables the control electronics to manage speed, acceleration, deceleration and current draw while continuously adapting torque in response to friction and obstacles.

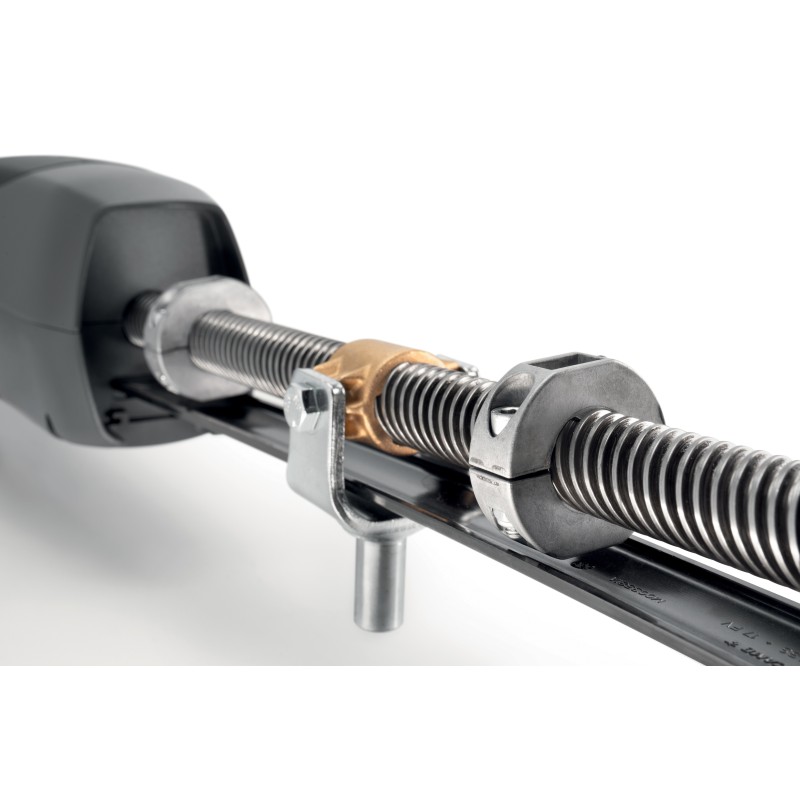

Mechanical limit stops on the worm screw
NEW ATI features sturdy mechanical limit switches mounted directly on the worm screw. Metal elements on the screw allow the maximum opening and closing positions to be adjusted precisely, improving reliability over time. Adjustment is simple and quick: the aluminium casing is removed and the limit switches are fixed in the desired position along the screw.

Photocell options

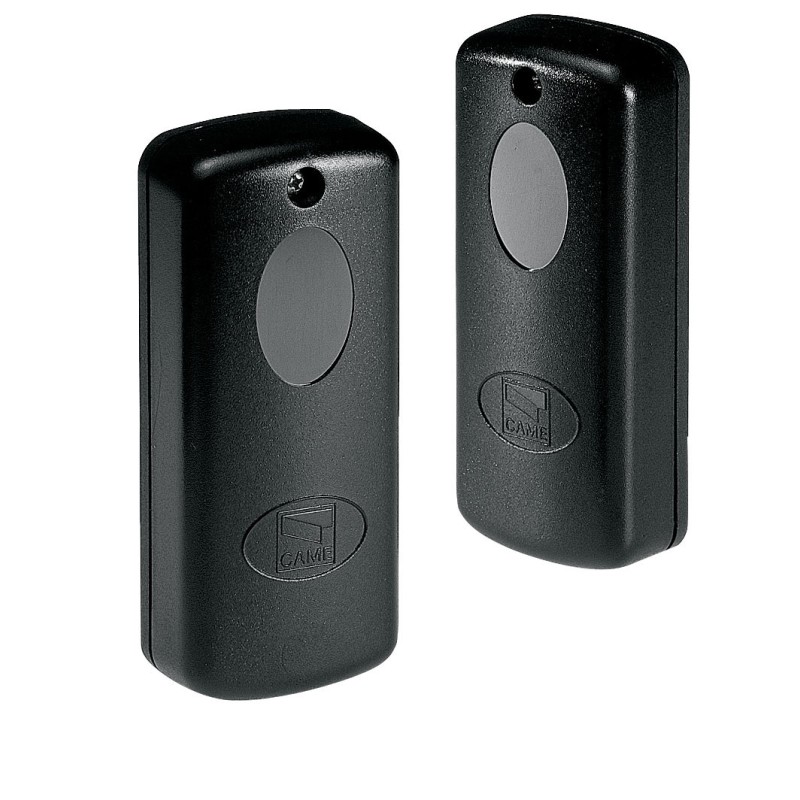

Kits with DIR photocells use traditional surface-mount safety beams with a 10 m range and 12–24 V AC–DC supply, suitable where standard wiring is available. Kits with DXR wired photocells upgrade to swivel photocells with an adjustable infrared beam (up to 20 m range) and synchronisation of multiple pairs, making alignment easier on awkward posts. Kits with DXR BUS photocells provide the same adjustable DXR hardware but connect via the CAME CXN BUS two-wire system, simplifying cabling and integration with compatible control panels.

Remote control options

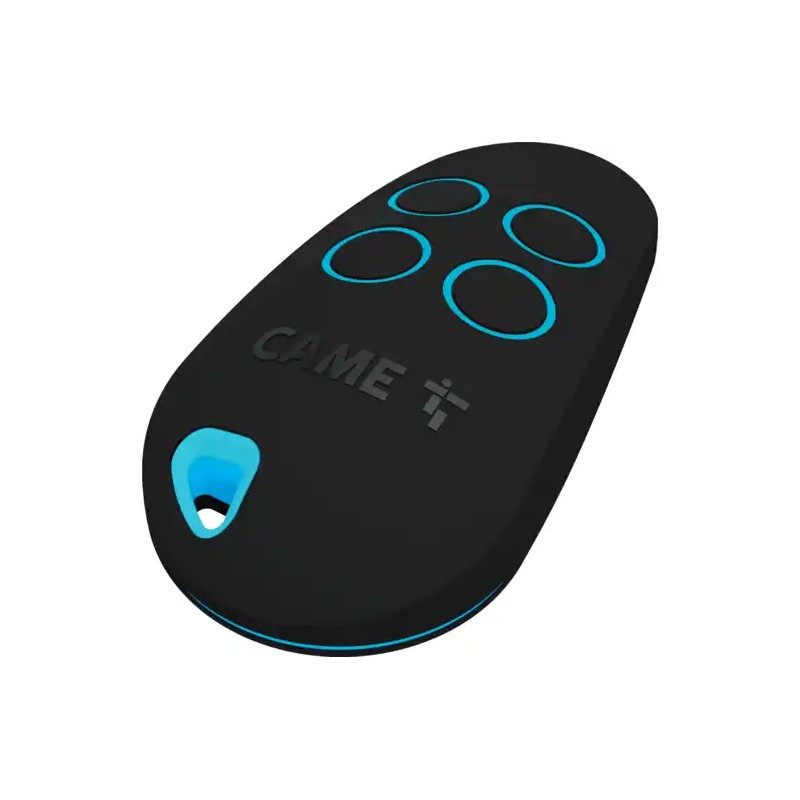

Kits with TOP remotes include compact CAME transmitters with rolling-code radio technology and self-learning from existing TOP, TAM or TWIN handsets, providing straightforward, secure keyfob control. Kits with TTS remotes use a more refined transmitter with a metal-detail front and removable battery compartment, combining rolling-code security with a more premium look and feel.

Kit variants covered on this page

  • 8K01MP-0515 – Pair 5m 24V ATI kit with DIR photocells & TOP remotes (standard).

  • 8K01MP-0516 – Pair 5m 24V ATI kit with DXR wired photocells & TOP remotes.

  • 8K01MP-0517 – Pair 5m 24V ATI kit with DXR wired photocells & TTS remotes.

  • 8K01MP-0518 – Pair 5m 24V ATI kit with DXR BUS photocells & TOP remotes.

  • 8K01MP-0519 – Pair 5m 24V ATI kit with DXR BUS photocells & TTS remotes.

✅ Key Features

  • Double swing gate automation kit for two leaves up to 5m each.

  • Twin ATI50DGF 24V DC operators with continuous-duty rating.

  • Up to 4000 N thrust per operator; approx. 19 s opening to 90°.

  • Die-cast aluminium structure with extruded aluminium casing.

  • Mechanical limit stops mounted directly on the worm screw for precise, reliable end-of-travel adjustment.

  • Manual release with trilobe key on each operator.

  • Available with DIR, DXR wired or DXR BUS photocells, depending on kit code.

  • Available with TOP or TTS radio remotes, depending on kit code.

  • Compatible with 24V NEW ATI functions such as AST and battery back-up when used with a suitable CAME 24V control panel.

Parameter Value
Kit codes 8K01MP-0515 / 0516 / 0517 / 0518 / 0519
Motor model ATI50DGF
Motor part code 801MP-0220
Motor power supply 24 V DC
Rated motor power 120 W (per operator)
Number of operators 2
Maximum gate leaf length 5 m per leaf
Max leaf weight at 5 m 400 kg
Max leaf weight at 4 m 500 kg
Max leaf weight at 3 m 600 kg
Max leaf weight at 2.5 m 800 kg
Max leaf weight at 2 m 1000 kg
Maximum opening angle 120°
Opening time to 90° 19 s (per operator)
Duty cycle Continuous duty (per operator)
Thrust 400 – 4000 N
Protection rating (operators) IP54
Operating temperature (operators) -20 °C to +55 °C
Operator colour RAL 7024
Application dimension E (operators) 920 mm
Maximum dimension C (operators) 155 mm
Photocell options DIR, DXR wired or DXR BUS photocells (per kit code)
Radio control TOP or TTS series remotes (per kit code)

Accessories & Related Products

Product Details

Reference 8K01MP-0515 Category Electric Gate Kits Brand CAME
CAME

Product Specifics

Gate type Swing gate
Single or twin kit Twin gate kit
Max weight per gate 800
Max length per gate 5000
Above or underground Above ground
Max opening angle 120 degrees
Motor Electromechanical
Locking method Mechanically locking motor
Power Supply Voltage 230v
Motor voltage 24v
Gate Speed 19 seconds 90 Degrees
Duty Cycle continuous
Protection Rating IP 54
Category Swing Gate Kit
